Name: EC battery management system 3-16S | U MOLY POWER
Brand: U MOLY POWER

Product Specifications

Parameter	Value
Battery Series	3–16S
Continuous Current	40A / 60A / 80A

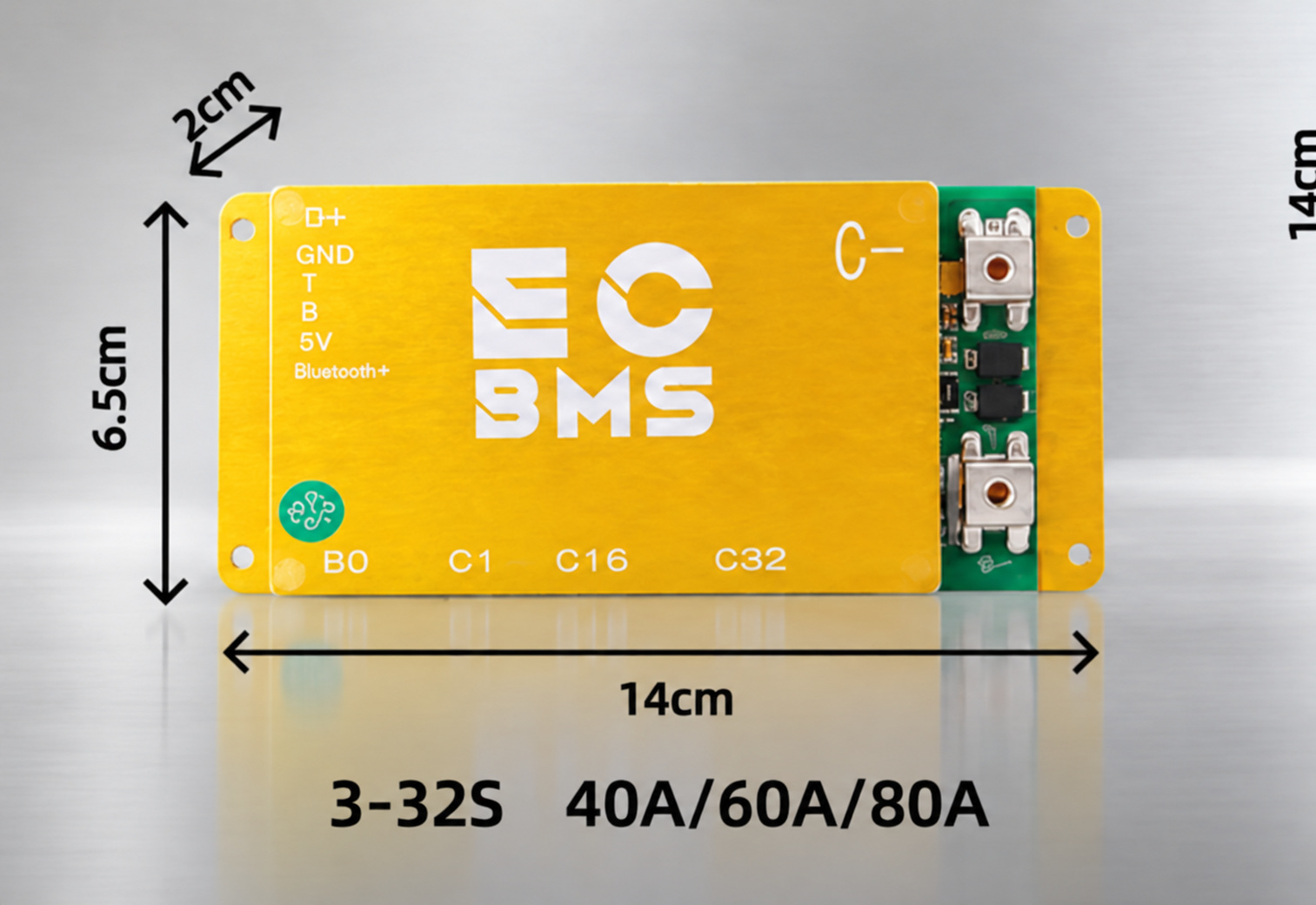

Dimensions	14 × 7 × 2 cm
Battery Types	LTO (2.8V) / LiFePO4 (LFP, 3.7V) / NMC & NCA (4.2V) / Custom Sodium-Ion & Solid-State Batteries
Voltage Detection Accuracy	mV-Level Detection
Current Detection Accuracy	mA-Level Detection
Protection Response Time	Millisecond-Level Response
Event Records	Up to 400 Rolling Records
Bluetooth	Supports iOS / Android
APP Languages	14 Languages
Passive Balancing Current	0.3A
Peak / Instantaneous Current	Up to 3× Continuous Current
MOSFET Breakdown Voltage	150V
Heating Function	Supported Across the Full Series
Display Expansion	2.0-inch / 4.3-inch Display
Communication & Expansion	Inverter Communication / GPS / 2G / 3G / 4G / Wi-Fi Expansion
Standard Package	Packaging Box + Sampling Wires + Buzzer

Key Features

Supports 3–16S battery packs with multiple continuous current options.
Supports LTO, LiFePO4 (LFP), NMC and NCA batteries, with customization available for sodium-ion and solid-state batteries.
mV-level voltage detection, mA-level current detection, and millisecond-level protection response.
Stores up to 400 rolling event records for checking historical protection triggers.
Bluetooth connectivity for iOS and Android devices.
APP supports 14 languages and displays battery voltage, temperature, current, capacity, and other detailed operating data and settings.
Supports manual sleep, automatic sleep, and deep sleep with near-zero power consumption.
Supports heating function across the full product series.
Activates automatically on initial power-up and supports charging or load activation after sleep.
0.3A passive balancing.
Supports peak current up to 3× the continuous current.
Supports 2.0-inch and 4.3-inch displays, inverter communication, GPS, cellular network, and Wi-Fi expansion.
Supports GPS tracking and 2G / 3G / 4G remote connectivity.
