Name: EC BMS 3-24S | U MOLY POWER
Brand: U MOLY POWER

3–24S Smart BMS Specifications

Parameter	Value
Battery Series	3–24S
Continuous Current	40A/50A/60A/80A/100A/120A/150A/180A/200A

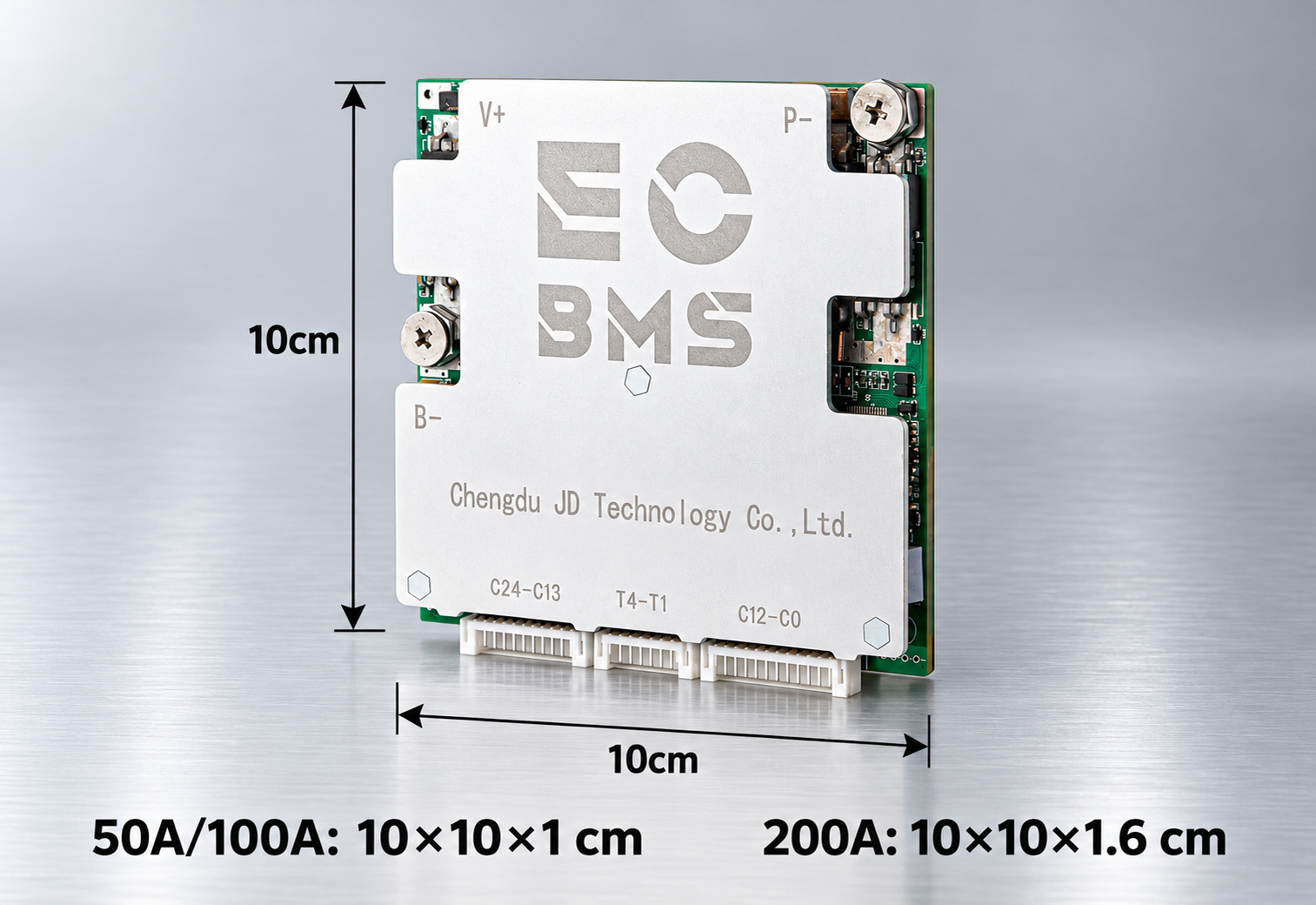

Dimensions	50A / 100A: 10 × 10 × 1 cm; 200A: 10 × 10 × 1.6 cm
Battery Chemistry	LTO (2.8V), LiFePO4 / LFP (3.7V), Ternary Lithium / NMC / NCA (4.2V); customizable for sodium-ion and solid-state batteries
Detection Accuracy	mV-level voltage detection and mA-level current detection
Protection Response Time	Millisecond-level (ms)
Bluetooth	Supports iOS and Android

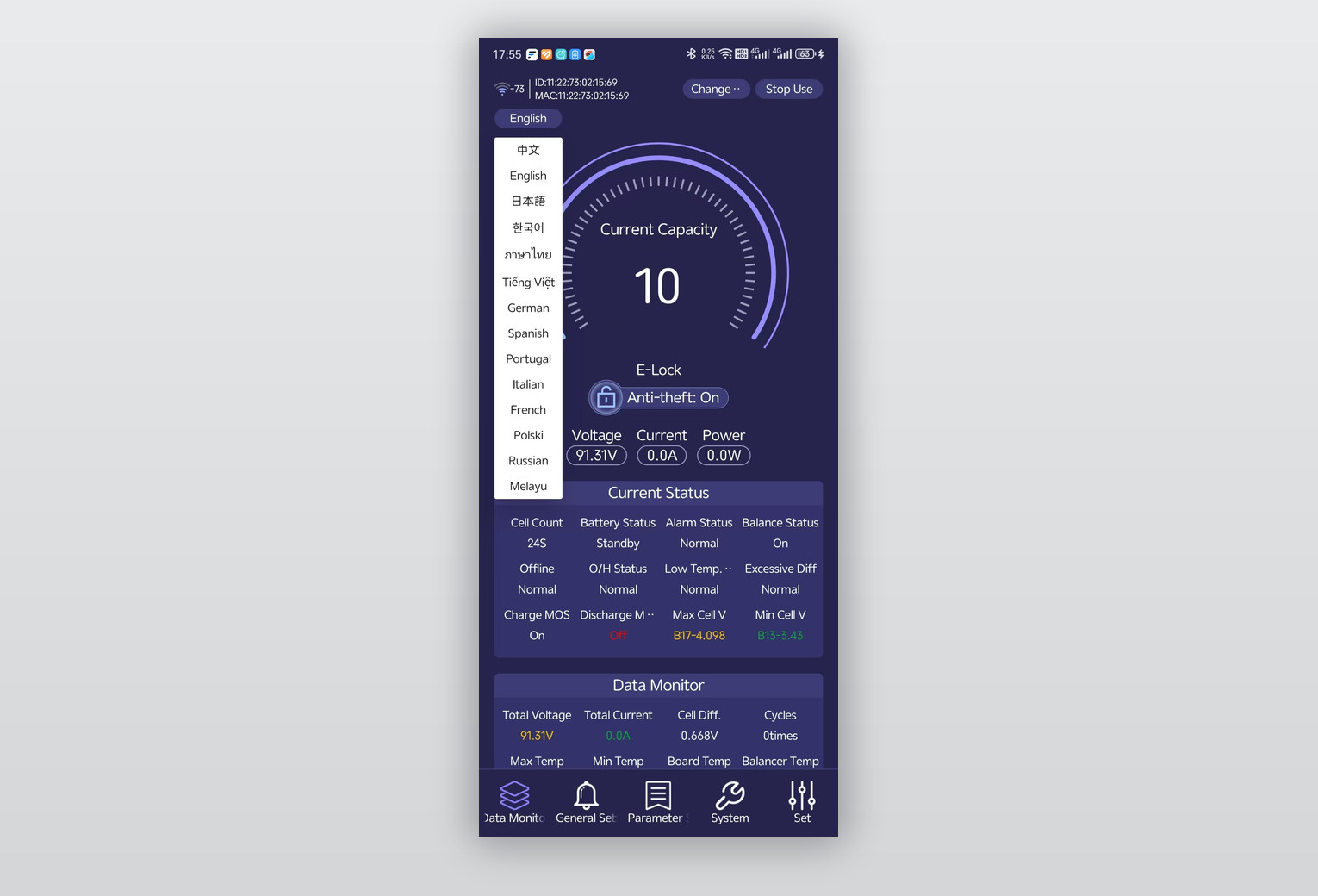

APP	Supports 14 languages; displays detailed battery voltage, temperature, current, capacity and configurable parameters

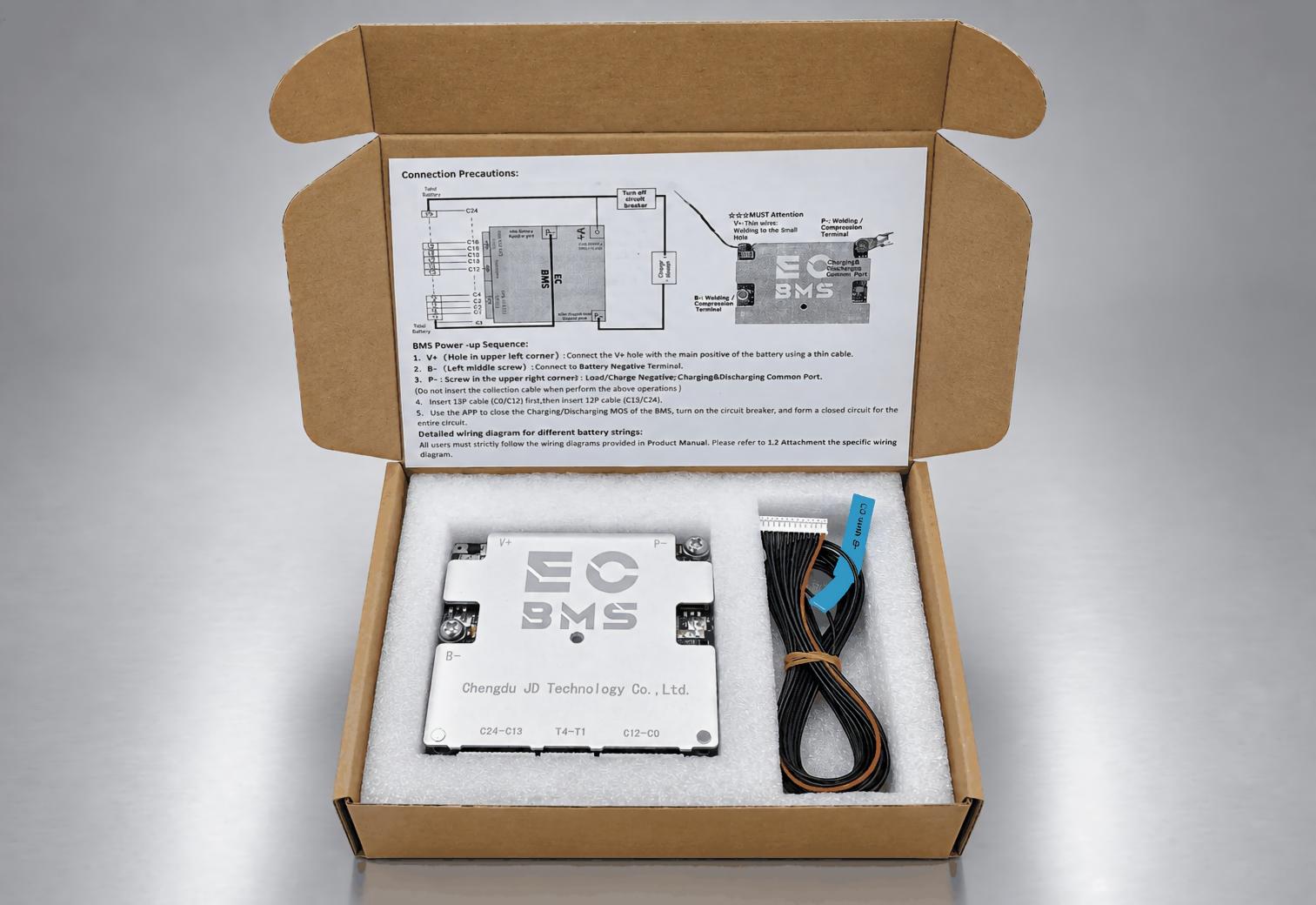

Standard Configuration	Packaging Box + Sampling Wires
Sleep Mode	Manual / Automatic
Activation	Activates upon initial power-up; supports charging activation and load activation after sleep
Balancing	0.1A Passive Balancing
Peak / Instantaneous Current	2 × Continuous Current
MOSFET Breakdown Voltage	100V
Inverter Compatibility	Can be used with an inverter, but without communication

Protection & Smart Functions

Overcharge and over-discharge voltage protection
High-temperature and low-temperature protection
Overcurrent and short-circuit protection
Two-level configurable protection parameters for voltage, current and temperature
Protection is triggered when preset threshold values are exceeded
Millisecond-level protection response
Manual and automatic sleep modes
Charging activation and load activation after sleep
0.1A passive cell balancing
Bluetooth connectivity for iOS and Android
14-language APP with real-time battery data monitoring and parameter settings

Multi-Level Smart Protection
Supports overcharge, over-discharge, overcurrent, short-circuit, and high/low-temperature protection. Features two-level adjustable protection parameters and millisecond-level response to ensure safe and stable battery operation.
Precision Monitoring & Smart Control
Supports mV-level voltage detection and mA-level current detection. Equipped with Bluetooth connectivity and a 14-language APP for real-time battery monitoring and parameter settings.
Smart Sleep & Cell Balancing
Supports manual and automatic sleep modes, charging and load activation, and 0.1A passive cell balancing to improve cell voltage consistency and battery management efficiency.
